FOC-MPO-OS2 – Fibre MTP / MPO Optic Connector for OS2 Single mode Fibre Cable

Home » Product » FOC-MPO-OS2 – Fibre MTP / MPO Optic Connector for OS2 Single mode Fibre Cable

FOC-MPO-OS2 – Fibre MTP / MPO Optic Connector for OS2 Single mode Fibre Cable

Product Code: FOC-MPO-OS2

Category:

Get A Quote Ask A Question

Description

The Fibre MTP / MPO Optic Connector for OS2 Single mode Fibre Cable, part code FOC-MPO-OS2, is in stock from MF Communications.

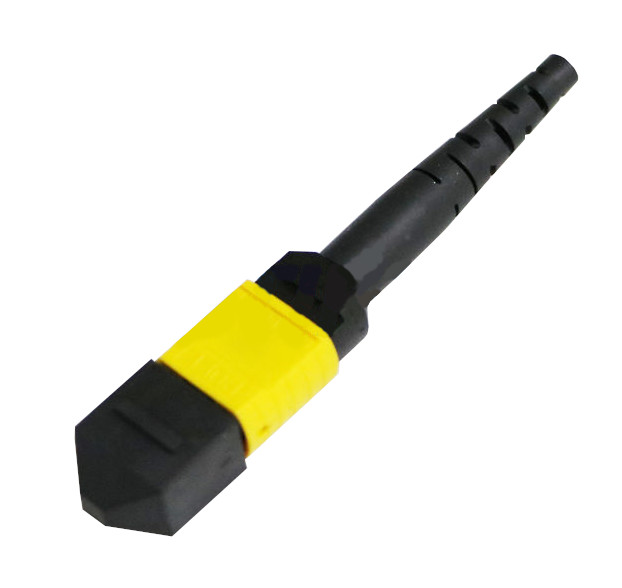

The MPO fibre optic connector is a 12 fibre connector for ribbon cable. It’s main use is for preterminated cable assemblies and cabling systems. MPO/MTP connector terminates the end of an optical fibre and enables quicker connection and disconnection than splicing.

The connectors mechanically couple and align the cores of fibres so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibres.

This connector can be used in CATV, active device termination, telecommunication networks, Local Area Networks (LAN), data processing networks, test equipment, premise installation and Wide Area Networks (WAN).

Connector Type: MPO / MTP Ferrule End-face: PC, UPC, APC
Fibre Type: OS1 OS2 OM1 OM2 OM3 OM4 Cable Type: 8core, 12core, 24core
Cable OD: 0.9mm, 3.0mm Housing Color: Blue, Green, Beige
Insertion Loss: <0.3dB Return Loss: >50dB

We are able to offer a range of customisable specifications. If your required part is not listed, please contact us and we would be pleased to assist.

  • NTT standard compatible
  • Single mode and Multimode
  • Zirconia sleeves or Phosphor bronze sleeves
  • Available without flanges or with flange for duplex, saving panel space
  • SC2 8Port high density for patch panel mount applications
  • Meet JIS5974 and bellcore GR-326 standard
  • Compliant with IEC874-14 & IEC874-19
  • All parts compliant with ROHS


Fibre FOC-MPO-OS2 Specifications
