Avaya DL360PG8 Server 2CPU MID4

Home » Product » Avaya DL360PG8 Server 2CPU MID4

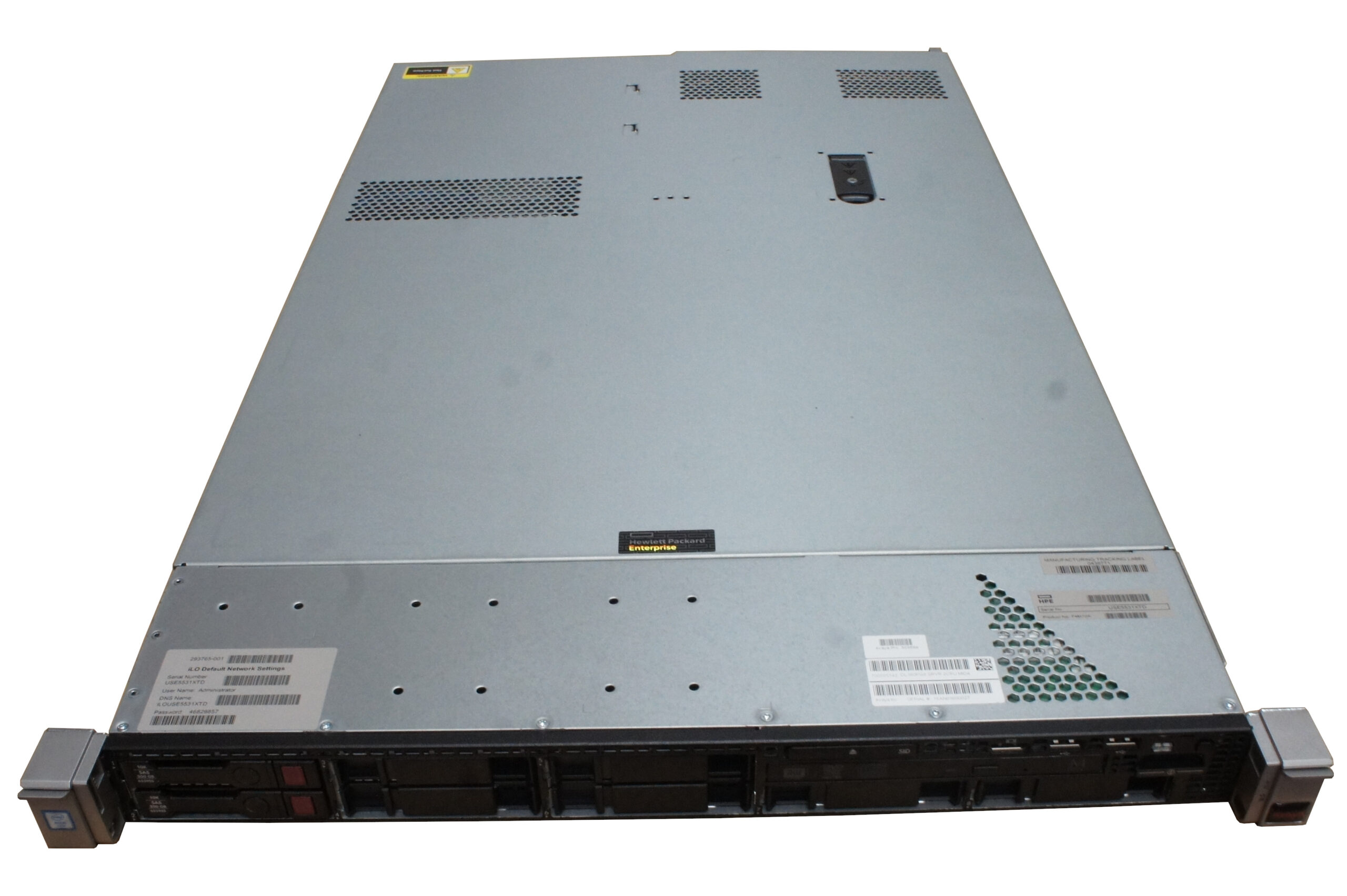

Avaya DL360PG8 Server 2CPU MID4

Description

The 305398 – Avaya DL360PG8 Server AAC SMB is in stock.  DL360PG8 SRVR 2CPU MID4. Alternative part code 700505142.

The Avaya DL360PG8 Server 2CPU MID4 is known by two product codes: 700505142 or alternatively, 305398.  It is a product in the Avaya Common Servers range.

The DL360PG8 Server supports several Avaya software solutions.  Some solutions may require extra hardware and memory requirements that are not delivered as standard configuration. This overview covers the standard configuration only.  Please contact us for more information and to discuss the available options for the Avaya DL360PG8 Server 2CPU MID4.

The Avaya HP DL360p G8 Server base specifications are:

Processor
Intel E5–2630, Six Core / 2.3 GHz (Sandybridge)
4 memory channels per CPU with up to 3 DIMMs per channel (most applications use 1 or 2 DIMMs per channel to optimize memory speed)

Memory
4 GB DDR3 RDIMMs

HW RAID
P420i RAID controller with 512 MB Cache and battery backup. Optioned as RAID 1 or 5

Hot-Plug disk drive cage
8 Small Form Factor 2.5” hot-plug hard drive bays are available when an optical drive is installed.

Disk drive
300 GB SAS 2.5″ 10K RPM 6G DP Hard Drive. Two base configurations:
299.96 GB total: RAID 1, 2 x 300 GB drives
599.93 GB total: RAID 5, 3 x 300 GB drives

NICs
4 integrated ENET Gigabit NIC ports with TCP offload engine (included on motherboard)

PCI slots
Two PCI-Express Gen 3expansion slots: (1) full-height, half-length slot and (1) low-profile slot

Removable media
Slim line SATA DVD-RW optical drive (used in all Avaya configurations)

Power supply
460 W hotplug AC power supply

Additional items
2 front USB, 4 back USB, 1 internal USB port, and front video connector

MF Communications source and supply new, refurbished and remanufactured Avaya servers and other telephone system parts. All products are fully tested, come with a full warranty and can be delivered worldwide. We have 1000s of products in our warehouse. So, if you cannot find the parts you are looking for, contact us and we will find them for you.

Please quote Avaya DL360PG8 Server 2CPU MID4 or 700505142 when contacting us about this product.

  • Intel E5–2630, Six Core / 2.3 GHz (Sandybridge) Processor
  • 4 memory channels per CPU with up to 3 DIMMs per channel
  • 4 GB DDR3 RDIMMs
  • P420i RAID controller with 512 MB Cache and battery backup
  • 8 Small Form Factor 2.5” hot-plug hard drive bays are available when an optical drive is installed
  • 300 GB SAS 2.5″ 10K RPM 6G DP Hard Drive
  • 4 integrated ENET Gigabit NIC ports with TCP offload engine (included on motherboard)
  • Two PCI-Express Gen 3expansion slots
  • Slim line SATA DVD-RW optical drive
  • 460 W hotplug AC power supply
